This article explains how to integrate Duo SAML Single Sign-On (SSO) with Timus so users can authenticate to Timus using Duo.

Prerequisites

Before you begin, make sure you have:

• Administrator access to your Duo Admin Panel
• Administrator access to your Timus Manager
• Users already created in Duo

Step 1: Sign in to Duo Admin Panel

Go to:

https://admin.duosecurity.com/login

Sign in with your administrator account.

Step 2: Add a New Application

After logging in:

1. Navigate to Applications
2. Click Add Application
3. Search for:

Generic SAML Service Provider

4. Select:

Generic SAML Service Provider - Single Sign-On

5. Click Add

Step 3: Configure Basic Application Settings

Use the following values:

Application Name

Timus DUO SAML Integration

Application Type

Generic SAML Service Provider - Single Sign-On

User Access

Choose one of the following:

• Enable for all users
• Enable only for permitted groups (recommended)

If using group-based access, assign your desired Duo group such as:

Timus_Users

Step 4: Configure Service Provider Settings

Scroll down to the Service Provider section.

Use the following values:

Entity ID

Copy the Entity ID shown under Duo Metadata and paste it into the Service Provider Entity ID field.

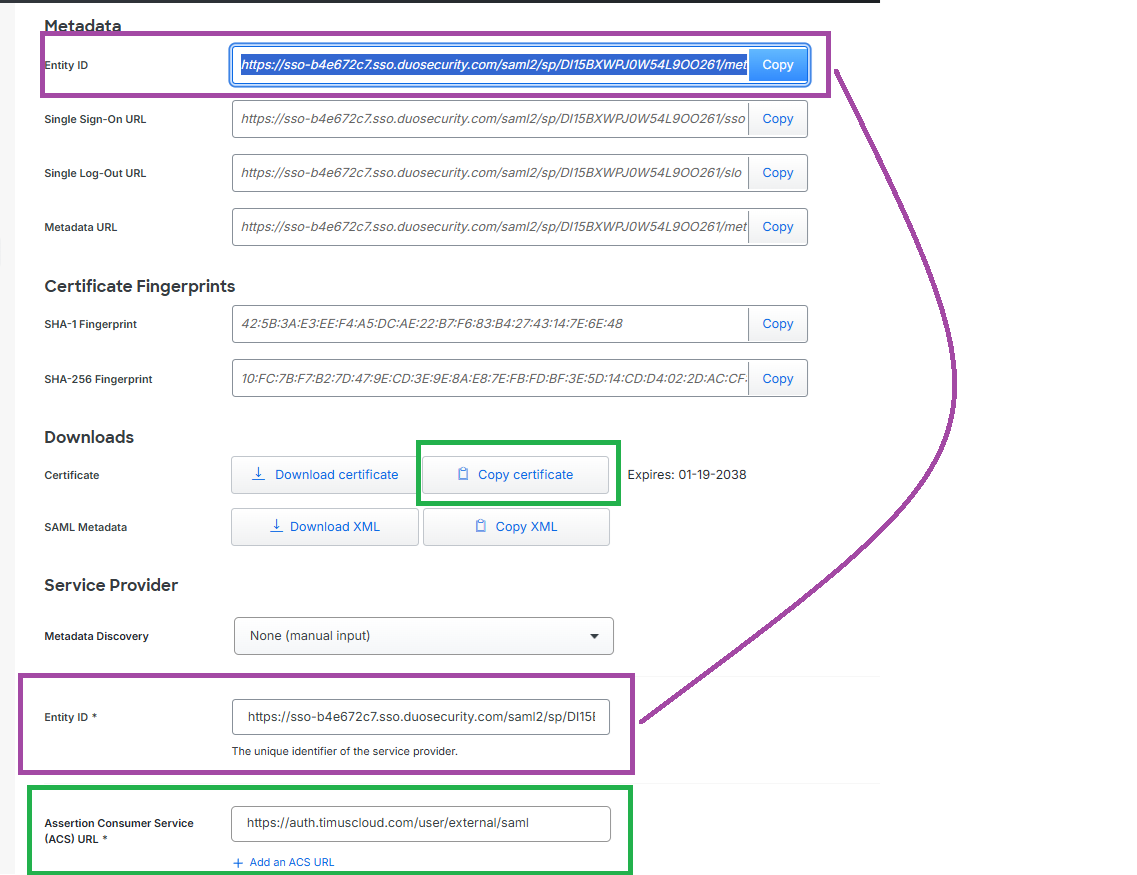

Example (as shown in the image below)

Assertion Consumer Service (ACS) URL

https://auth.timuscloud.com/user/external/saml

Single Logout URL

Leave blank.

Service Provider Login URL

Leave blank.

Default Relay State

Leave blank.

Step 5: Configure SAML Response Settings

Use the following settings:

NameID Format

urn:oasis:names:tc:SAML:1.1:nameid-format:emailAddress

NameID Attribute

<Email Address>

Signature Algorithm

SHA256

Signing Options

Enable:

• Sign Response
• Sign Assertion

Assertion Encryption

Disabled

Step 6: Configure Attribute Mapping

Under Map Attributes, add the following values:

Step 7: Save the Configuration

Click Save at the bottom of the page.

Step 8: Copy Duo Metadata for Timus

After saving the Duo application, locate the Metadata section in Duo Admin Panel.

You will need to copy the following values for the Timus configuration:

Identifier

Use the value labeled:

Entity ID

SAML 2.0 Service URL

Use the value labeled:

Single Sign-On URL

X.509 Certificate

Download the certificate or use the Copy Certificate option in Duo.

You will paste these values into the Timus SAML integration settings in the next step.

Step 9: Configure Timus SAML Settings

Log in to Timus Manager and navigate to:

Settings → Integration → SAML 2.0 → Manage → Create New

Configure the new SAML provider using the values copied from Duo.

Title

DUO SAML

Identifier

Paste the Entity ID copied from Duo Metadata.

SAML 2.0 Service URL

Paste the Single Sign-On URL copied from Duo Metadata.

X.509 Certificate

Copy the certificate from Duo and paste it into the X.509 Certificate field in Timus.

Allowed Sites

Select:

Remote Access → All

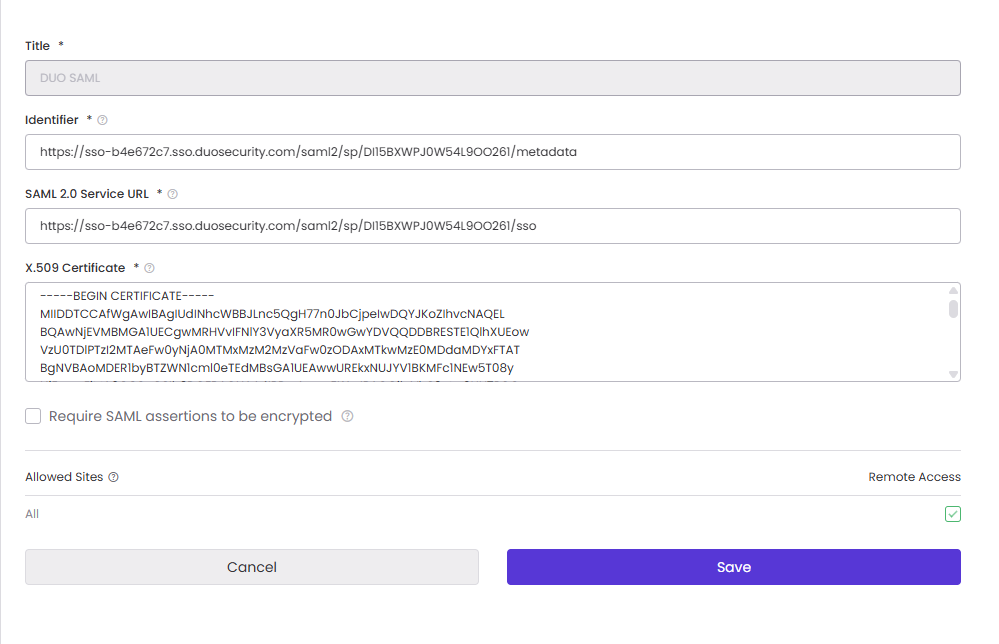

Example Timus Configuration

Use the example below as a reference:

• Title: DUO SAML
• Identifier: Duo Entity ID
• SAML 2.0 Service URL: Duo Single Sign-On URL
• X.509 Certificate: Duo Certificate
• Allowed Sites: Remote Access → All

Your Duo SAML integration with Timus is now successfully configured.

Users can now authenticate securely through Duo Single Sign-On and access Timus based on their assigned roles and permissions.

Important First Login Note

For the initial setup, users must sign in using the Single Sign-On URL provided in the Duo Metadata. This first authentication is required to correctly provision and register user data within Timus Manager.

After this initial login has been completed successfully, users will be able to access Timus directly through:

• https://my.timusnetworks.com
• Timus Connect application

Summary

• First login must be performed via Duo Single Sign-On URL
• User data is created and synchronized in Timus during first authentication
• Subsequent logins can be done directly via Timus access points(Timus Connect application and/or my.timusnetworks.com) without repeating the SSO URL step
